產品描述

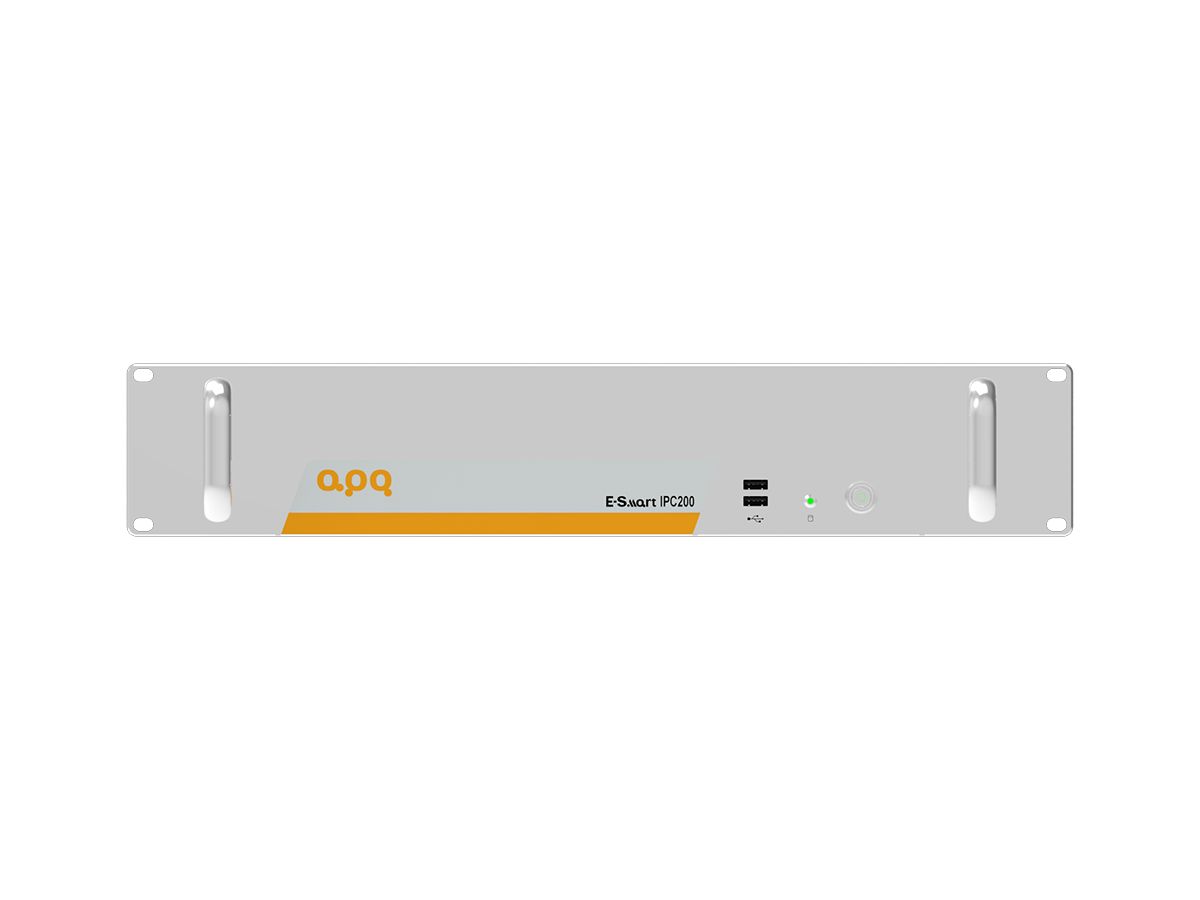

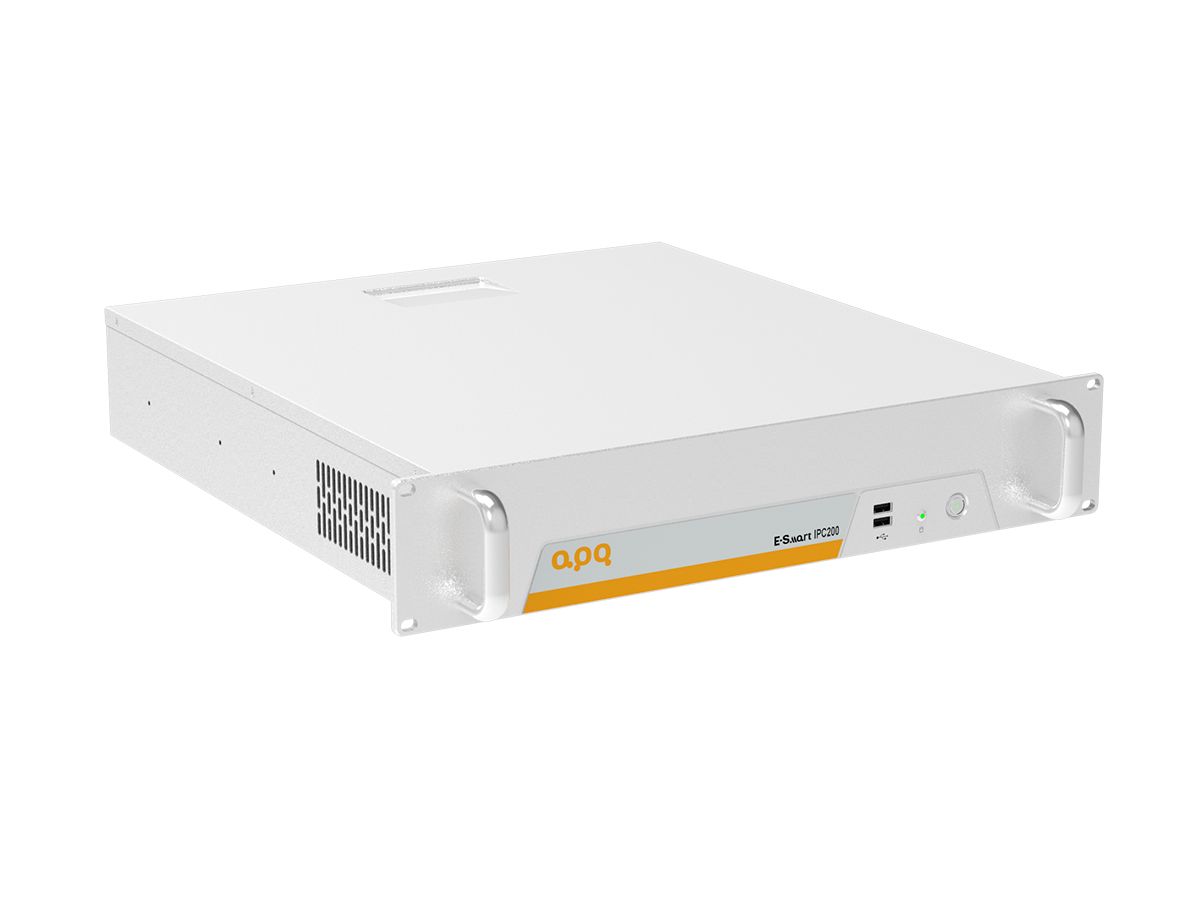

為了滿足多個行業的應用需求，阿普奇推出了IPC200-Q470 2U機架式工業計算機。這款工控機支持英特爾?第10/11代Core/Pentium/Celeron臺式CPU，可滿足高性能計算需求。同時，IPC200-Q470采用了全套模具成型設計，標準19英寸2U機架式機箱，能夠安裝標準ATX主板和支持標準2U電源，為用戶提供了更加靈活的配置選擇。在拓展性方面，IPC200-Q470支持長達7個半高卡槽擴展，能夠滿足各種行業的應用需求。人性化設計是該產品的另一個亮點，機箱前端配備了系統風扇，并且支持無需工具的維護，使得系統維護更加便捷。在儲存方面，IPC200-Q470工控機支持高達四個3.5英寸抗震硬盤插槽，能夠滿足用戶對于大容量數據存儲的需求。同時，前面板還設計有USB接口、開關設計以及電源和存儲狀態顯示屏，進一步簡化了系統的維護操作。
總之，IPC200-Q470 2U機架式工業計算機融合了高性能、拓展性和便捷維護等多項優點，是適用于多個行業應用的理想選擇。不管是工業自動化、數據中心還是網絡通信等領域，IPC200-Q470都能夠發揮出色的性能，為用戶提供穩定可靠的計算支持。無論是簡單的日常運算還是復雜的大數據處理，IPC200-Q470都能夠勝任，是您值得信賴的合作伙伴。
|
Model |
IPC200-Q470 |
|
|
Processor System |
CPU | Support Intel? 10/11th Generation Core / Pentium/ Celeron Desktop CPU |
| TDP | 125W | |
| Socket | LGA1200 | |
| Chipset | Q470 | |
| BIOS | AMI 256 Mbit SPI | |
|
Memory |
Socket | 4 * Non-ECC U-DIMM Slot, Dual Channel DDR4 up to 2933MHz |
| Capacity | 128GB, Single Max. 32GB | |
|
Graphics |
Controller | Intel? UHD Graphics |
|
Ethernet |
Controller | 1 * Intel i210-AT GbE LAN Chip (10/100/1000 Mbps, RJ45) |
| 1 * Intel i219-LM/V GbE LAN Chip (10/100/1000 Mbps, RJ45) | ||
|
Storage |
SATA | 4 * SATA3.0 7P Connector, Support RAID 0, 1, 5, 10 |
| M.2 | 1 * M.2 Key-M (PCIe x4 Gen 3 + SATA3.0, NVMe/SATA SSD Auto Detect, 2242/2260/2280) | |
|
Expansion Slots |
PCIe | 2 * PCIe x16 slot (Gen 3, x16 /NA signal or Gen 3, x8 /x8 signal) |
| 3 * PCIe x4 slot (Gen 3, x4 signal) | ||
| PCI | 2 * PCI slot | |
| Mini PCIe | 1 * Mini PCIe (PCIe x1 Gen 3 + USB 2.0, with 1 * SIM Card) | |
|
Front I/O |
Ethernet | 2 * RJ45 |
| USB | 2 * USB3.2 Gen 2x1 (Type-A) | |
| 4 * USB3.2 Gen 1x1 (Type-A) | ||
| 2 * USB2.0 (Type-A) | ||
| Display | 1 * DP1.4: max resolution up to 3840*2160 @ 60Hz | |
| 1 * HDMI1.4: max resolution up to 3840*2160 @ 30Hz | ||
| Audio | 3 * 3.5mm Jack (Line-out + Line-in + MIC) | |
| Serial | 2 * RS232/422/485 (COM1/2, DB9/M, Full Lanes, BIOS Switch) | |
|
Rear I/O |
USB | 2 * USB2.0 (Type-A) |
| Button | 1 * Power Button | |
| LED | 1 * Power status LED | |
| 1 * Hard drive status LED | ||
|
Internal I/O |
USB | 1 * USB2.0 (Vertical TYEP-A) |
| 2 * USB2.0 (Header) | ||
| COM | 4 * RS232 (COM3/4/5/6, Header, Full Lanes) | |
| Display | 1 * VGA: max resolution up to 1920*1200 @ 60Hz (wafer) | |
| 1 * eDP: max resolution up to 1920*1200 @ 60Hz (Header) | ||
| Audio | 1 * Front Audio (Line-Out + MIC, Header) | |
| 1 * Speaker (3W (per channel) into a 4Ω Loads, wafer) | ||
| GPIO | 1 * 16 bits DIO (8DI and 8DO, wafer) | |
| SATA | 4 * SATA 7P Connector | |
| LPT | 1 * LPT (Header) | |
| PS/2 | 1 * PS/2 (wafer) | |
| SMBus | 1 * SMBus (wafer) | |
| FAN | 2 * SYS FAN (Header) | |
| 1 * CPU FAN (Header) | ||
|
Power Supply |
Type | 2U FLEX |
| Power Input Voltage | AC power supply, voltage and frequency shall be based on the 2U power supply provided | |
| RTC Battery | CR2032 Coin Cell | |
|
OS Support |
Windows | Windows 10/11 |
| Linux | Linux | |
|
Watchdog |
Output | System Reset |
| Interval | Programmable 1 ~ 255 sec | |
|
Mechanical |
Enclosure Material | SGCC+AL6061 |
| Dimensions | 482.6mm(L) * 475.7mm(W) * 88.1mm(H) | |
| Mounting | Rack-mounted/Desktop | |
|
Environment |
Operating Temperature | 0 ~ 50℃ |
| Storage Temperature | -20 ~ 70℃ | |
| Relative Humidity | 10 to 95% RH (non-condensing) | |
-
