產品描述

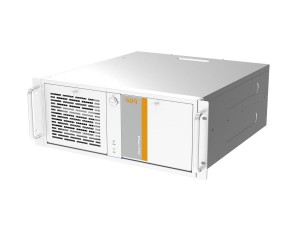

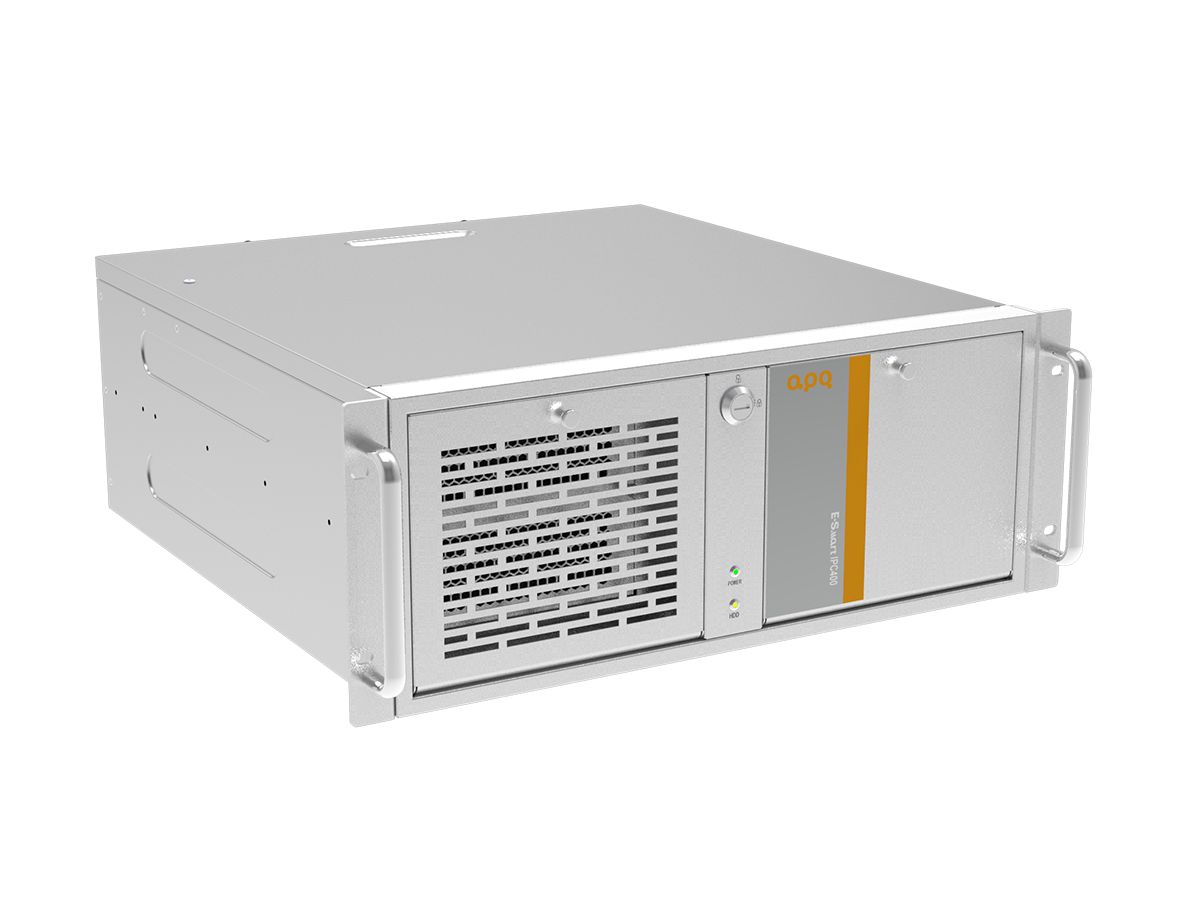

阿普奇4U上架式工控機IPC400-Q470是一款專為工業應用打造的強大邊緣計算設備，具有卓越的性能和功能特點。這款工控機采用最新的Intel? 10/11th Generation Core/Pentium/Celeron Desktop CPU，提供強大的數據處理能力，快速應對各種復雜的邊緣計算任務。同時，IPC400-Q470支持標準ATX主板和4U電源，確保系統穩定運行。最多支持7槽位全高卡擴展，滿足多種行業應用需求。機箱前置系統風扇采用免工具維護設計，簡化了散熱系統的清潔和更換過程。精心設計的免工具PCIe擴展卡固定架具有更高的抗震性，減少設備損壞的風險。存儲方面，4U上架式工控機IPC400-Q470包括最多8個3.5英寸抗震抗沖擊硬盤位和2個5.25英寸光驅安裝盒，滿足大容量存儲需求。同時，前面板USB和開關機設計以及電源和存儲狀態顯示使系統維護更加便捷。具備非法開箱報警功能和可鎖前門，防止未經許可的訪問。這些安全特性增強了設備的安全防護能力，確保工業數據的安全性和完整性。
總之，阿普奇4U上架式工控機IPC400-Q470憑借出色的計算能力、強大的擴展性、人性化的維護設計和卓越的安全性能等特點，適用于各種工業環境下的邊緣計算應用。
|
Model |
IPC400-Q470 |
|
|
Processor System |
CPU | Support Intel??10/11th Generation Core / Pentium/ Celeron Desktop CPU |
| TDP | 125W | |
| Socket | LGA1200 | |
| Chipset | Q470 | |
| BIOS | AMI 256 Mbit SPI | |
|
Memory |
Socket | 4 * Non-ECC U-DIMM Slot, Dual Channel DDR4 up to 2933MHz |
| Capacity | 128GB, Single Max. 32GB | |
|
Graphics |
Controller | Intel? UHD Graphics |
|
Ethernet |
Controller | 1 * Intel i210-AT GbE LAN Chip (10/100/1000 Mbps, RJ45)1 * Intel i219-LM/V GbE LAN Chip (10/100/1000 Mbps, RJ45) |
|
Storage |
SATA | 4 * SATA3.0 7P Connector, Support RAID 0, 1, 5, 10 |
| M.2 | 1 * M.2 Key-M (PCIe x4 Gen?3 + SATA3.0, NVMe/SATA SSD Auto Detect, 2242/2260/2280) | |
|
Expansion Slots |
PCIe | 2 * PCIe x16 slot (Gen 3, x16 /NA signal or Gen 3, x8 /x8 signal)3 * PCIe x4 slot (Gen 3, x4 signal) |
| PCI | 2 * PCI slot | |
| Mini PCIe | 1 * Mini PCIe (PCIe x1 Gen 3 + USB 2.0, with 1 * SIM Card) | |
|
Front I/O |
Ethernet | 2 * RJ45 |
| USB | 2 * USB3.2 Gen?2x1 (Type-A)4 * USB3.2 Gen?1x1 (Type-A)
2 * USB2.0 (Type-A) |
|
| Display | 1 * DP1.4: max resolution up to 3840*2160 @ 60Hz 1 * HDMI1.4: max resolution up to 3840*2160 @ 30Hz |
|
| Audio | 3 * 3.5mm Jack (Line-out + Line-in + MIC) | |
| Serial | 2 * RS232/422/485 (COM1/2, DB9/M, Full Lanes, BIOS Switch) | |
|

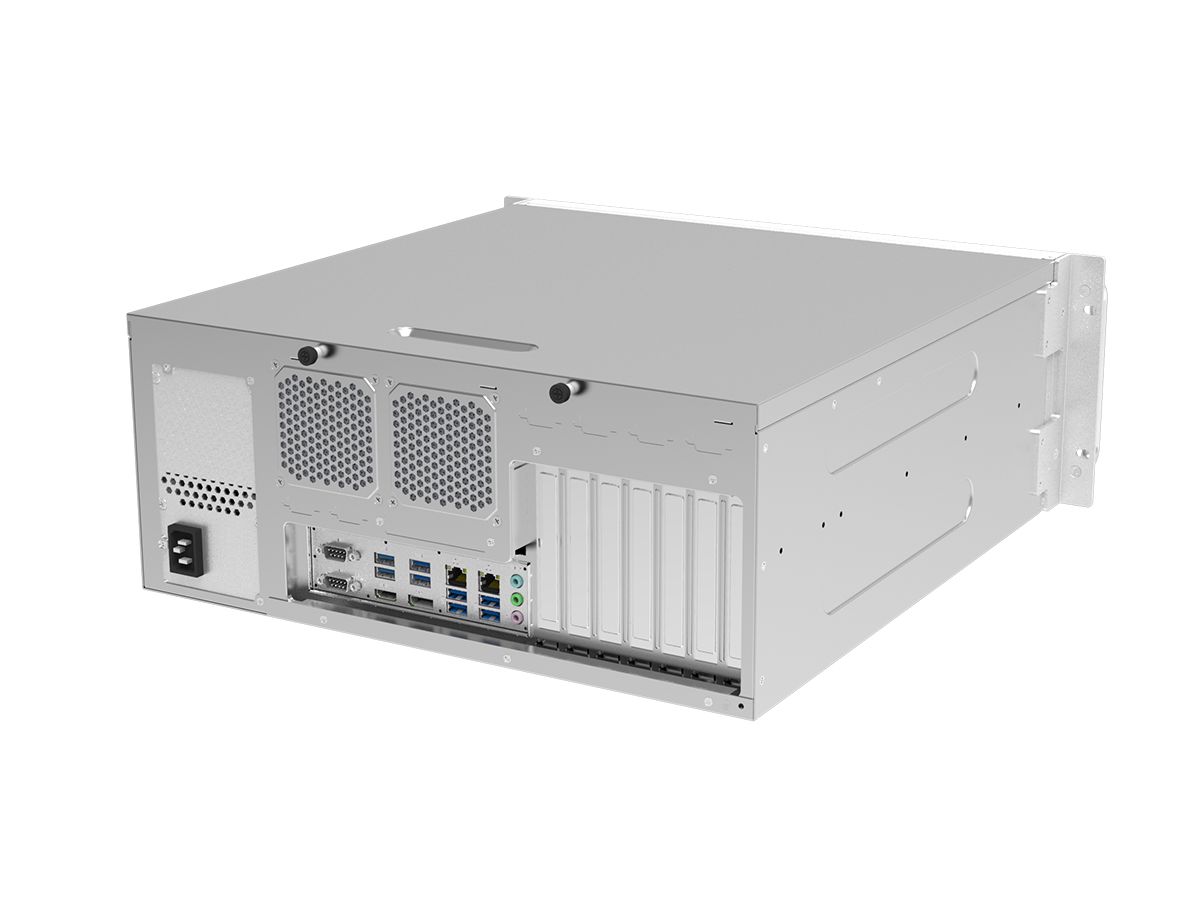

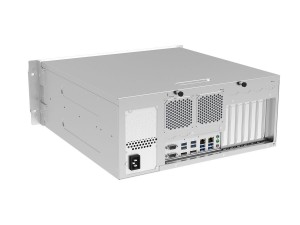

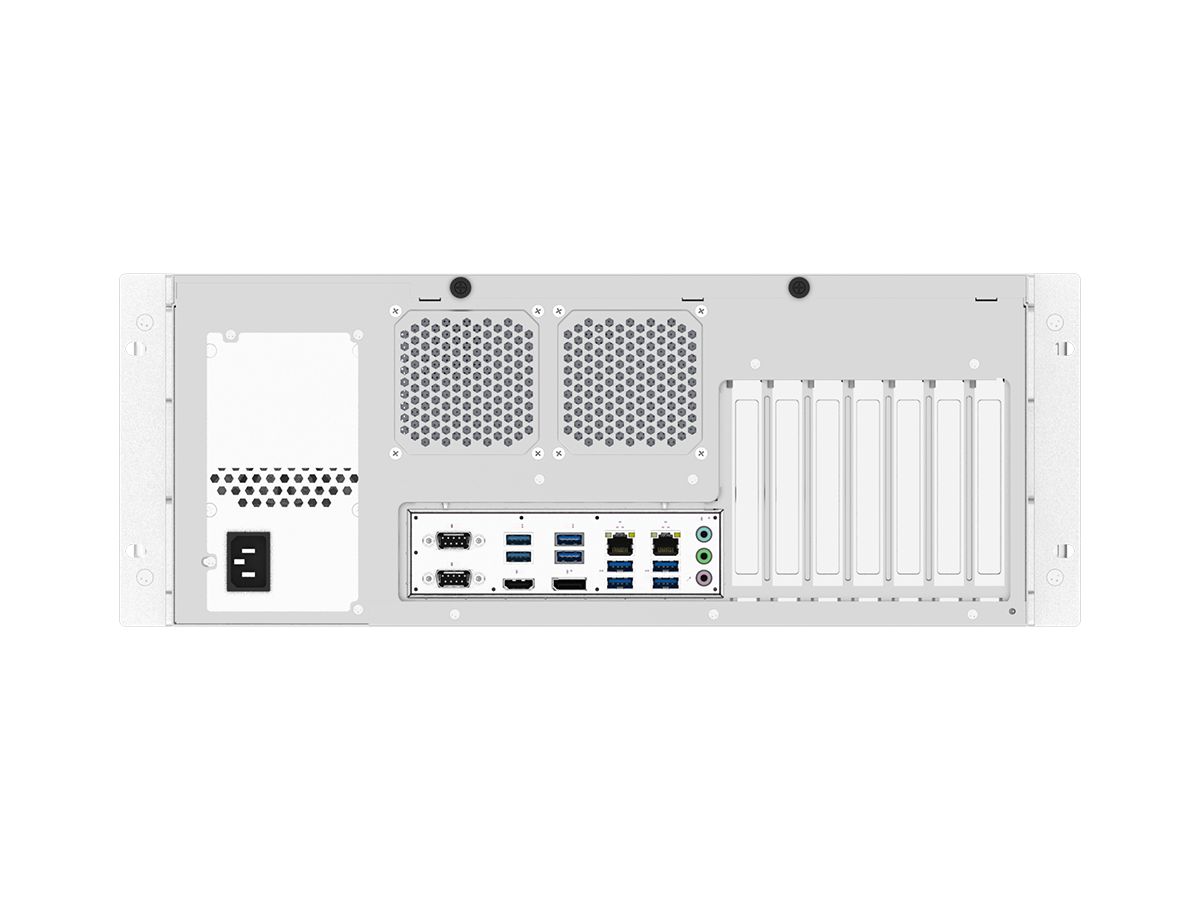

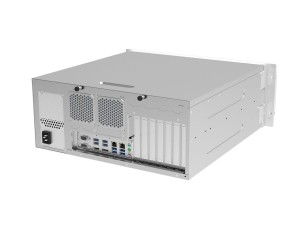

Rear I/O |
USB | 2 * USB2.0 (Type-A) |
| Button | 1 * Power Button | |
| LED | 1 * Power status LED1 * Hard drive status LED | |
|
Internal I/O |
USB | 1 * USB2.0 (Vertical TYEP-A)2 * USB2.0 (Header) |
| COM | 4 * RS232 (COM3/4/5/6, Header, Full Lanes) | |
| Display | 1 * VGA: max resolution up to 1920*1200 @ 60Hz (wafer)1 * eDP: max resolution up to 1920*1200 @ 60Hz (Header) | |
| Audio | 1 * Front Audio (Line-Out + MIC, Header)1 * Speaker (3W (per channel) into a 4Ω Loads, wafer) | |
| GPIO | 1 * 16 bits DIO (8DI and 8DO, wafer) | |
| SATA | 4 * SATA 7P Connector | |
| LPT | 1 * LPT (Header) | |
| PS/2 | 1 * PS/2 (wafer) | |
| SMBus | 1 * SMBus (wafer) | |
| FAN | 2 * SYS FAN (Header)1 * CPU FAN (Header) | |
|
Power Supply |
Type | ATX |
| Power Input Voltage | AC power supply, voltage and frequency shall be based on the ATX power supply provided | |
| RTC Battery | CR2032 Coin Cell | |
|
OS Support |
Windows | Windows 10/11 |
| Linux | Linux | |
|
Watchdog |
Output | System Reset |
| Interval | Programmable 1 ~ 255 sec | |
|
Mechanical |
Enclosure Material | SGCC |
| Dimensions | 482.6mm(L) * 464.5mm(W) * 177mm(H) | |
| Mounting | Shelf mounted installation | |
|
Environment |
Heat Dissipation System | PWM fan cooling |
| Operating Temperature | 0 ~ 50℃ | |
| Storage Temperature | -20 ~ 70℃ | |
| Relative Humidity | 10 to 95% RH (non-condensing) | |
-
