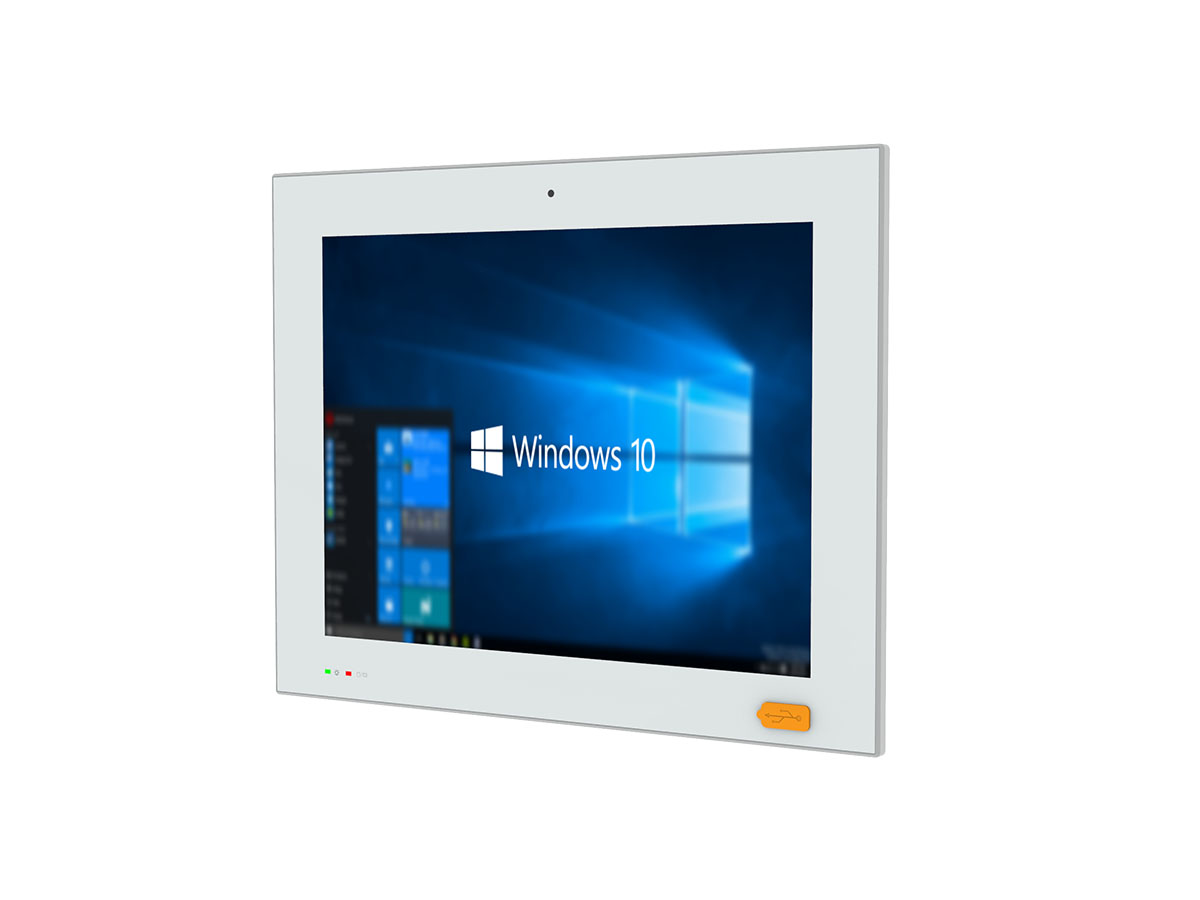

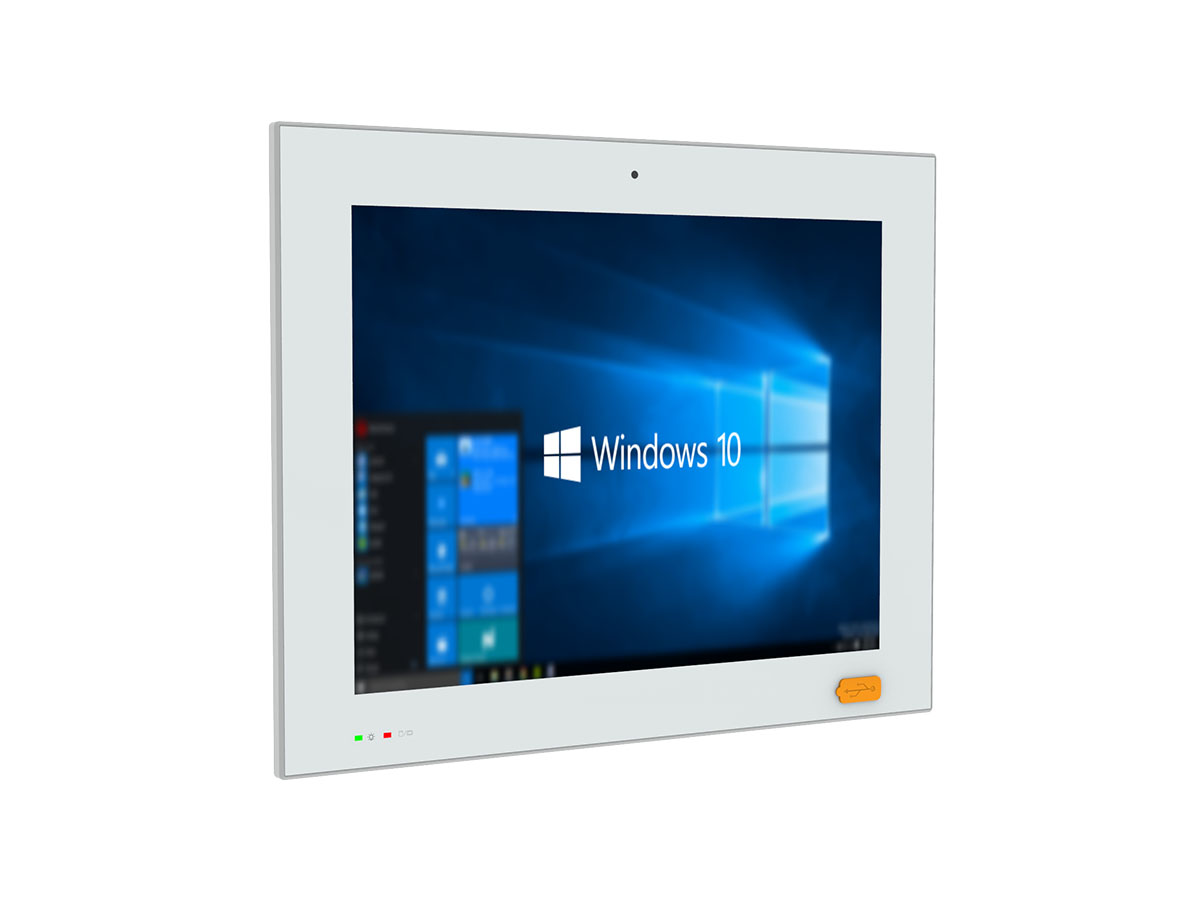

Note: The product image shown above is the PL150CQ-E6 model
PLE6系列11th-U平臺 工業一體機/工業平板電腦 電容觸摸屏
遠程管理
狀態監控
遠程運維
安全控制
聯系我們
掃碼即可添加微信，售前客服為您提供咨詢服務
產品描述
阿普奇全屏電容觸摸屏工業一體機PLxxxCQ-E6系列11th-U平臺，是一款專為工業應用而設計的工業一體機。采用全屏電容觸摸屏技術，為用戶提供流暢、準確的觸控體驗，滿足工業環境下的操作需求。該一體機采用模塊化設計，支持10.1~21.5″的屏幕尺寸，適應不同行業標準和用戶需求。前面板滿足IP65要求，具備出色的防塵防水性能。它采用Intel? 11th -U移動平臺CPU，保證高效性能的同時降低能耗。集成雙Intel?千兆網卡，提供高速穩定的網絡連接和數據傳輸能力。支持雙硬盤存儲，采用獨特的2.5″硬盤可抽拉設計，方便維護和升級。支持APQ aDoor模塊擴展，可根據具體應用需求進行定制配置，還支持WiFi/4G無線擴展，方便遠程管理和數據傳輸。采用無風扇設計和可拆卸式散熱器，提高系統可靠性。安裝方式上，支持嵌入式和VESA安裝方式，方便集成到各種工業環境中。
總之，阿普奇全屏電容觸摸屏工業一體機PLxxxCQ-E6系列11th-U平臺具備出色的性能和多樣化的功能，是工業自動化和邊緣計算領域的理想選擇。
|
Model |
PL101CQ-E6 | PL104CQ-E6 | PL121CQ-E6 | PL150CQ-E6 | PL156CQ-E6 | PL170CQ-E6 | PL185CQ-E6 | PL191CQ-E6 | PL215CQ-E6 | |
|
LCD |
Display Size | 10.1" | 10.4" | 12.1" | 15.0" | 15.6" | 17.0" | 18.5" | 19.0" | 21.5" |
| Display Type | WXGA TFT-LCD | XGA TFT-LCD | XGA TFT-LCD | XGA TFT-LCD | FHD TFT-LCD | SXGA TFT-LCD | WXGA TFT-LCD | WXGA TFT-LCD | FHD TFT-LCD | |
| Max.Resolution | 1280 x 800 | 1024 x 768 | 1024 x 768 | 1024 x 768 | 1920 x 1080 | 1280 x 1024 | 1366 x 768 | 1440 x 900 | 1920 x 1080 | |
| Luminance | 400 cd/m2 | 350 cd/m2 | 350 cd/m2 | 300 cd/m2 | 350 cd/m2 | 250 cd/m2 | 250 cd/m2 | 250 cd/m2 | 250 cd/m2 | |
| Aspect Ratio | 16:10 | 4:3 | 4:3 | 4:3 | 16:9 | 5:4 | 16:9 | 16:10 | 16:9 | |
| Viewing Angle | 89/89/89/89° | 88/88/88/88° | 80/80/80/80° | 88/88/88/88° | 89/89/89/89° | 85/85/80/80° | 89/89/89/89° | 85/85/80/80° | 89/89/89/89° | |
| Max. Color | 16.7M | 16.2M | 16.7M | 16.7M | 16.7M | 16.7M | 16.7M | 16.7M | 16.7M | |
| Backlight Lifetime | 20,000 hr | 50,000 hr | 30,000 hr | 70,000 hr | 50,000 hr | 30,000 hr | 30,000 hr | 30,000 hr | 50,000 hr | |
| Contrast Ratio | 800:1 | 1000:1 | 800:1 | 2000:1 | 800:1 | 1000:1 | 1000:1 | 1000:1 | 1000:1 | |
|
Touchscreen |
Touch Type | Projected Capacitive Touch | ||||||||
| Controller | USB Signal | |||||||||
| Input | Finger/Capacitive Touch Pen | |||||||||
| Light Transmission | ≥85% | |||||||||
| Hardness | ≥6H | |||||||||
|
Processor System |
CPU | Intel??11th?Generation Core? i3/i5/i7 Mobile -U CPU | ||||||||
| Chipset | SOC | |||||||||
| BIOS | AMI EFI BIOS | |||||||||
|
Memory |
Socket | 2 * DDR4-3200 MHz SO-DIMM Slot | ||||||||
| Max Capacity | 64GB | |||||||||
|
Graphics |
Controller | Intel? UHD Graphics/Intel??Iris??Xe Graphics (dependent on CPU type) | ||||||||
|
Ethernet |
Controller | 1 * Intel??i210AT (10/100/1000/2500 Mbps, RJ45) 1 * Intel??i219 (10/100/1000 Mbps, RJ45) |
||||||||
|
Storage |
SATA | 1 * SATA3.0 Connector | ||||||||
| M.2 | 1 * M.2 Key-M (SSD, 2280, NVMe+SATA3.0) | |||||||||
|
Expansion Slots |
aDoor | 2 * aDoor Expansion Slot | ||||||||
| aDoor Bus | 1 * aDoor Bus (16*GPIO + 4*PCIe + 1*I2C) | |||||||||
| Mini PCIe | 1 * Mini PCIe Slot (PCIe x1+USB 2.0, with Nano SIM Card) 1 * Mini PCIe Slot (PCIe x1+USB 2.0) |
|||||||||
|

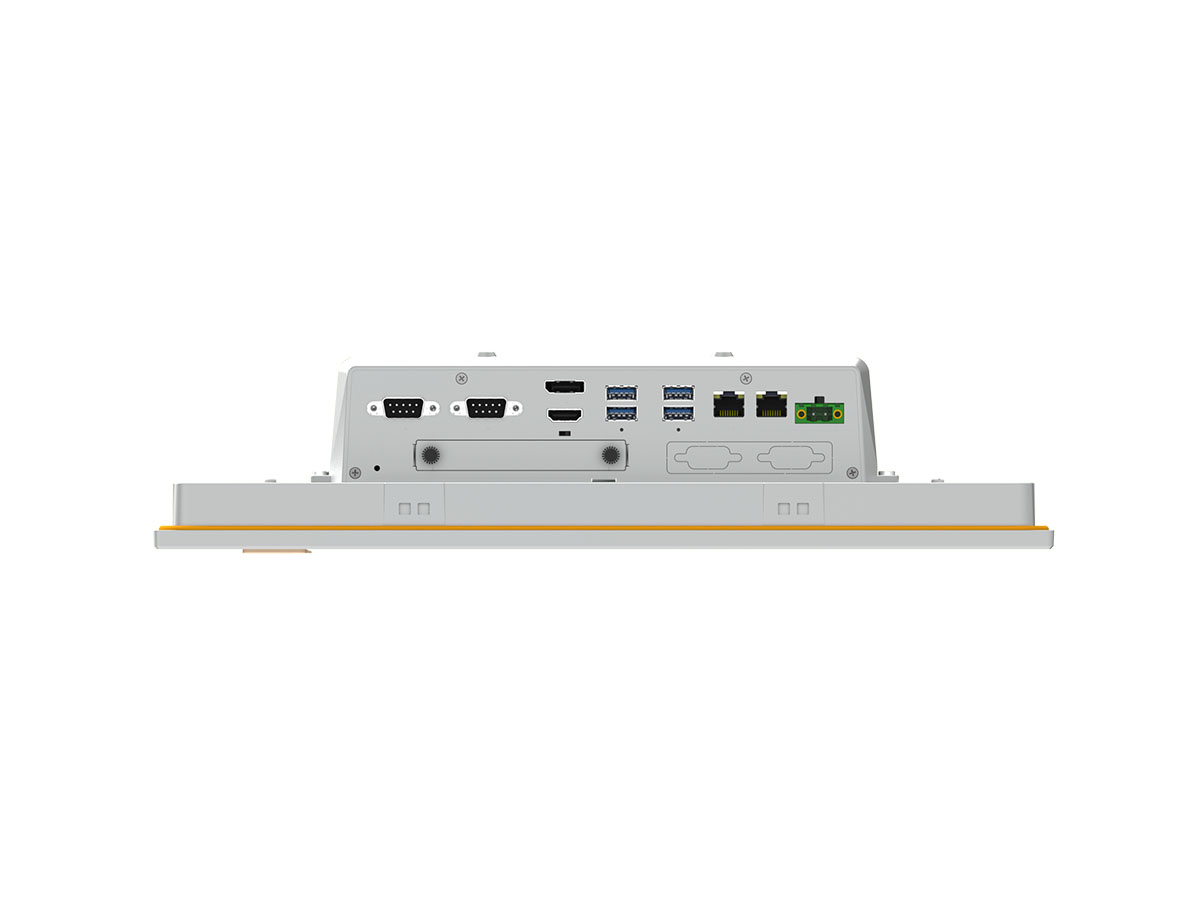

Front I/O |
USB | 2 * USB3.2 Gen2x1 (Type-A) 2 * USB3.2 Gen1x1 (Type-A) |
||||||||
| Ethernet | 2 * RJ45 | |||||||||
| Display | 1 * DP: up to 4096x2304@60Hz 1 * HDMI (Type-A): up to 3840x2160@24Hz |
|||||||||
| Serial | 2 * RS232/485 (COM1/2, DB9/M, BIOS control) | |||||||||
| Switch | 1 * AT/ATX Mode Switch (Enable/Disable automatically power on) | |||||||||
| Button | 1 * Reset (hold down 0.2 to 1s to restart, 3s to clear CMOS) 1 * OS Rec (system recovery) |
|||||||||
| Power | 1 * Power Input Connector (12~28V) | |||||||||
|

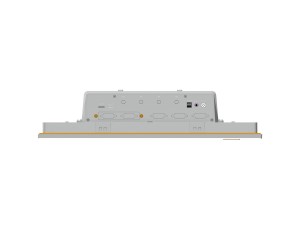

Rear I/O |
SIM | 1 * Nano SIM Card Slot (Mini PCIe module provide functional support) | ||||||||
| Button | 1 * Power Button+Power LED 1 * PS_ON |
|||||||||
| Audio | 1 * 3.5mm Audio Jack (LineOut+MIC, CTIA) | |||||||||
|
Internal I/O |
Front Panel | 1 * Front Panel (wafer, 3x2Pin, PHD2.0) | ||||||||
| FAN | 1 * CPU FAN (4x1Pin, MX1.25) 1 * SYS FAN (4x1Pin, MX1.25) |
|||||||||
| Serial | 1 * COM3/4 (5x2Pin, PHD2.0) 1 * COM5/6 (5x2Pin, PHD2.0) |
|||||||||
| USB | 4 * USB2.0 (2*5x2Pin, PHD2.0) | |||||||||
| LPC | 1 * LPC (8x2Pin, PHD2.0) | |||||||||
| Storage | 1 * SATA3.0 7Pin Connector 1 * SATA Power |
|||||||||
| Audio | 1 * Speaker (2-W (per channel)/8-Ω Loads, 4x1Pin, PH2.0) | |||||||||
| GPIO | 1 * 16bits DIO (8xDI and 8xDO, 10x2 Pin, PHD2.0) | |||||||||
|
Power Supply |
Type | DC | ||||||||
| Power Input Voltage | 12~28VDC | |||||||||
| Connector | 1 * 2Pin Power Input Connector (P=5.08mm) | |||||||||
| RTC Battery | CR2032 Coin Cell | |||||||||
|
OS Support |
Windows | Windows 10 | ||||||||
| Linux | Linux | |||||||||
|
Watchdog |
Output | System Reset | ||||||||
| Interval | Programmable 1 ~ 255 sec | |||||||||
|
Mechanical |
Enclosure Material | Radiator/Panel: Aluminium, Box/Cover: SGCC | ||||||||
| Mounting | VESA, embedded | |||||||||
| Dimensions (L * W * H, Unit: mm) |
272.1*192.7*84 | 284*231.2*84 | 321.9*260.5*84 | 380.1*304.1*85 | 420.3*269.7*84 | 414*346.5*84 | 485.7*306.3*84 | 484.6*332.5*84 | 552.6*344*84 | |
| Weight | Net: 3.2Kg, Total:4.5Kg |
Net: 3.4Kg, Total:4.7Kg |
Net: 3.6Kg, Total:4.9Kg |
Net: 5Kg, Total:6.6Kg |
Net: 4.9Kg, Total:6.5Kg |
Net: 5.7Kg, Total:7.3Kg |
Net: 5.6Kg, Total:7.2Kg |
Net: 6.5Kg, Total:8.1Kg |
Net: 7Kg, Total:8.6Kg |
|
|
Environment |
Heat Dissipation System | Passive heat dissipation | ||||||||
| Operating Temperature | -20~60℃ | -20~60℃ | -20~60℃ | -20~60℃ | -20~60℃ | 0~50℃ | 0~50℃ | 0~50℃ | 0~60℃ | |
| Storage Temperature | -20~60℃ | -20~70℃ | -30~80℃ | -30~70℃ | -30~70℃ | -20~60℃ | -20~60℃ | -20~60℃ | -20~60℃ | |
| Relative Humidity | 10 to 95% RH (non-condensing) | |||||||||
| Vibration During Operation | With SSD: IEC 60068-2-64 (1Grms@5~500Hz, random, 1hr/axis) | |||||||||
| Shock During Operation | With SSD: IEC 60068-2-27 (15G, half sine, 11ms) | |||||||||
-
