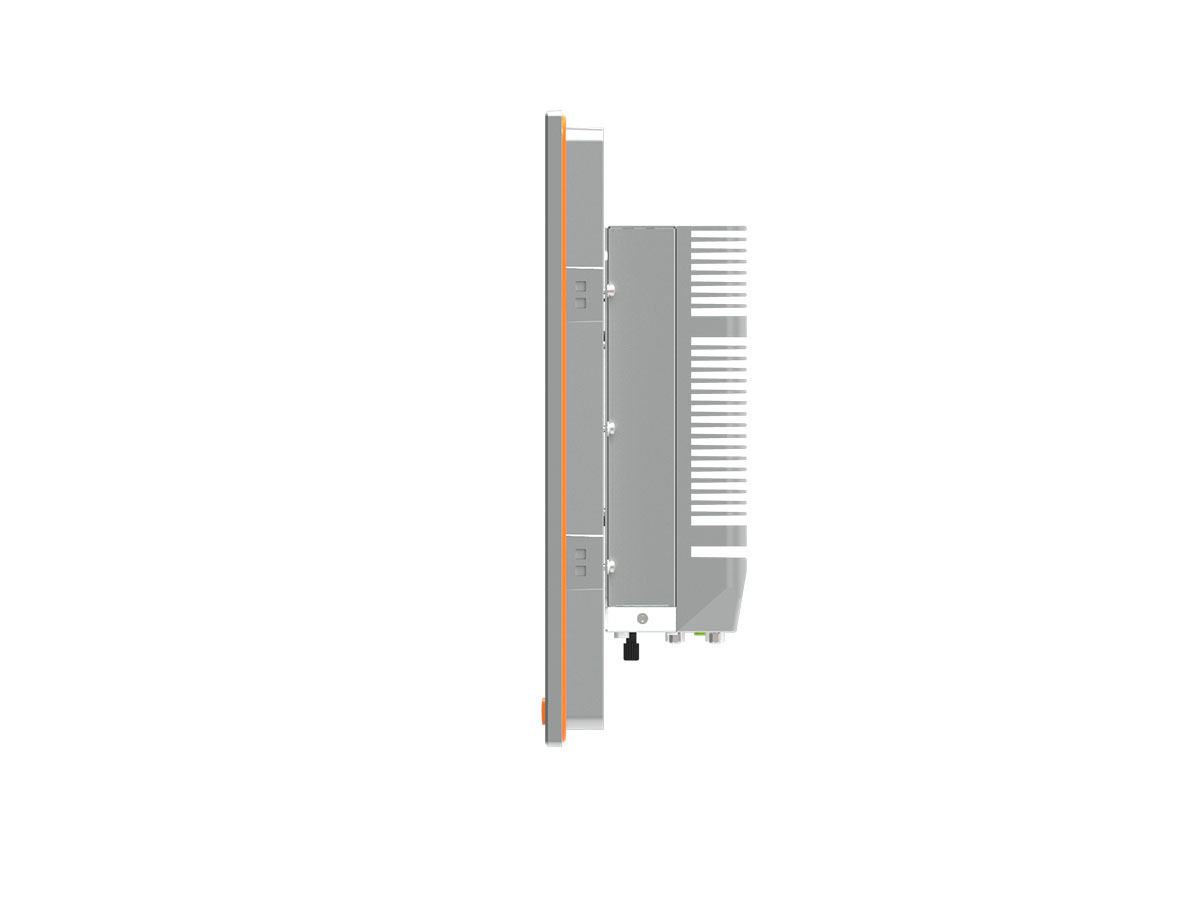

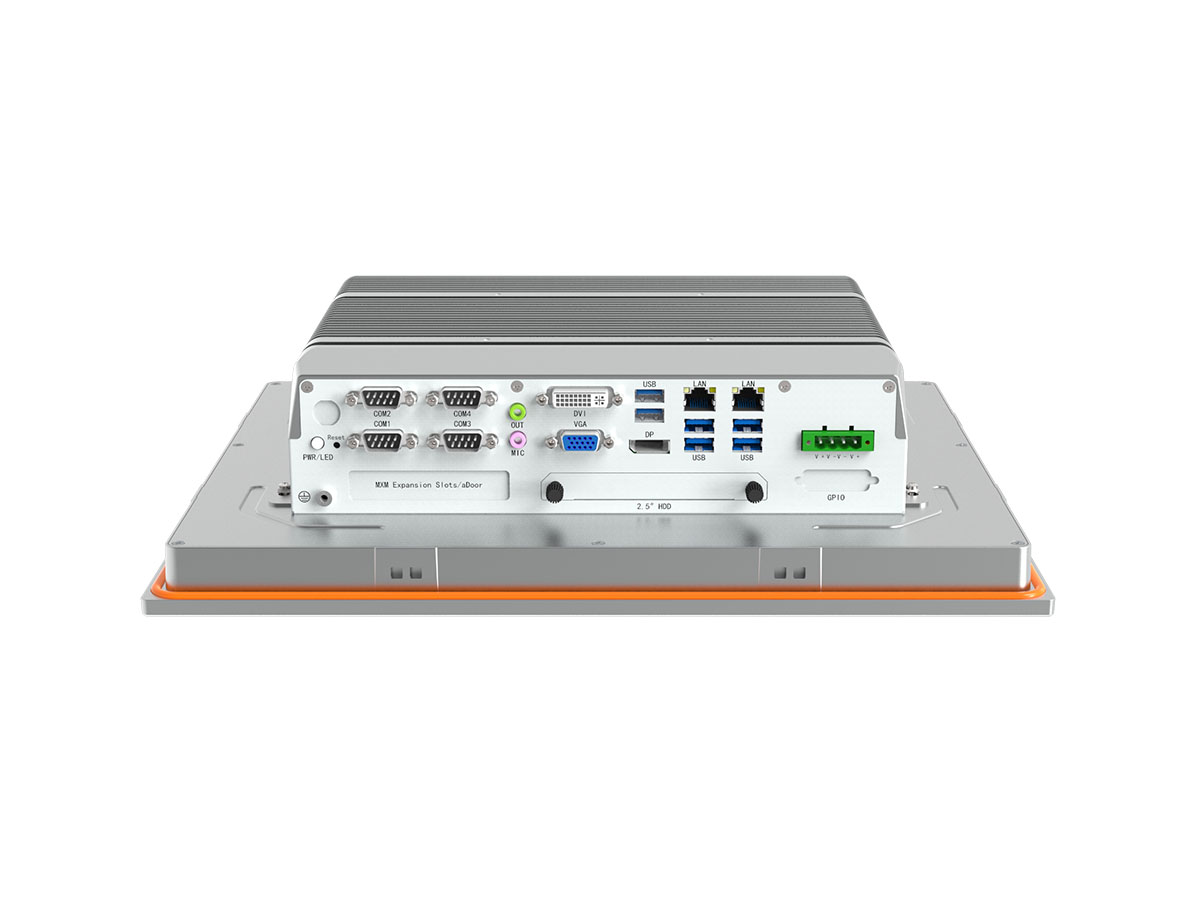

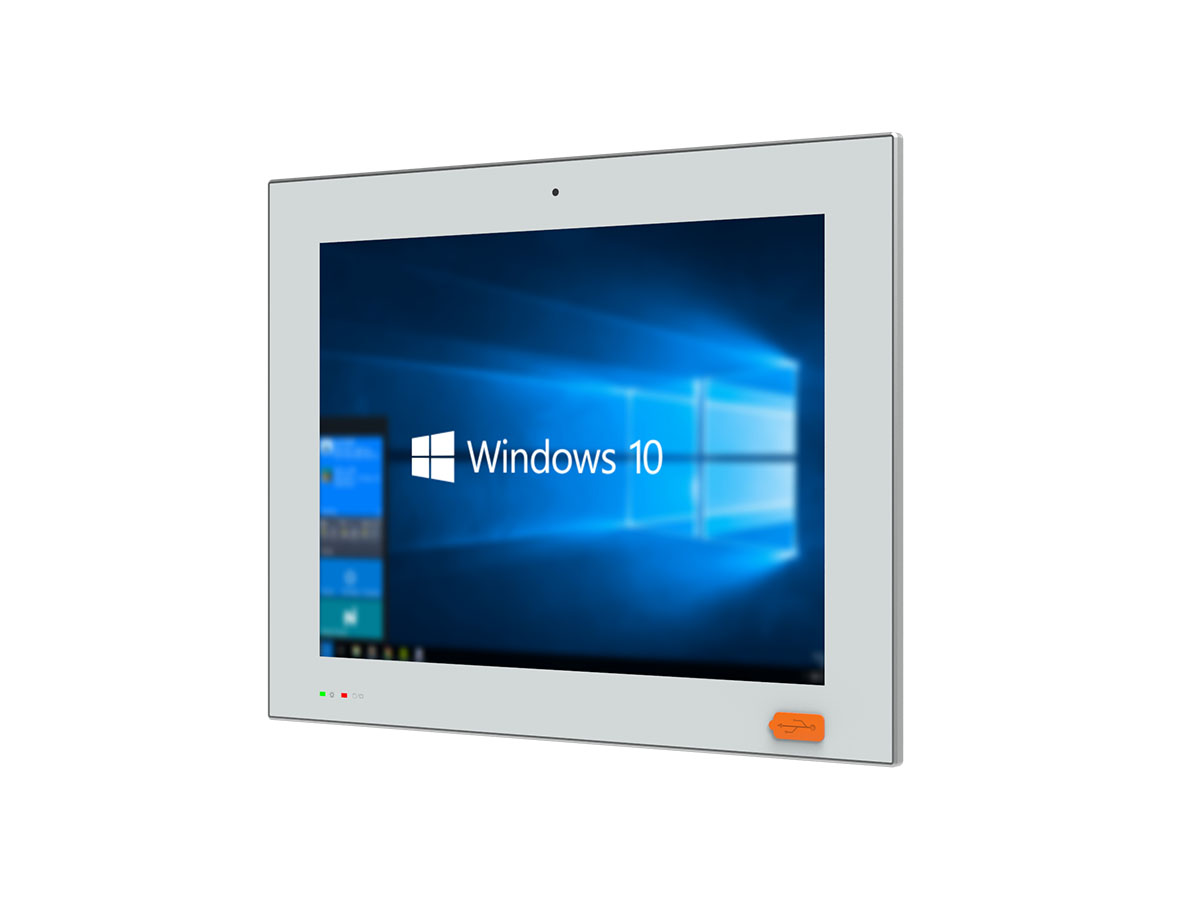

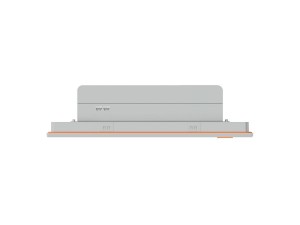

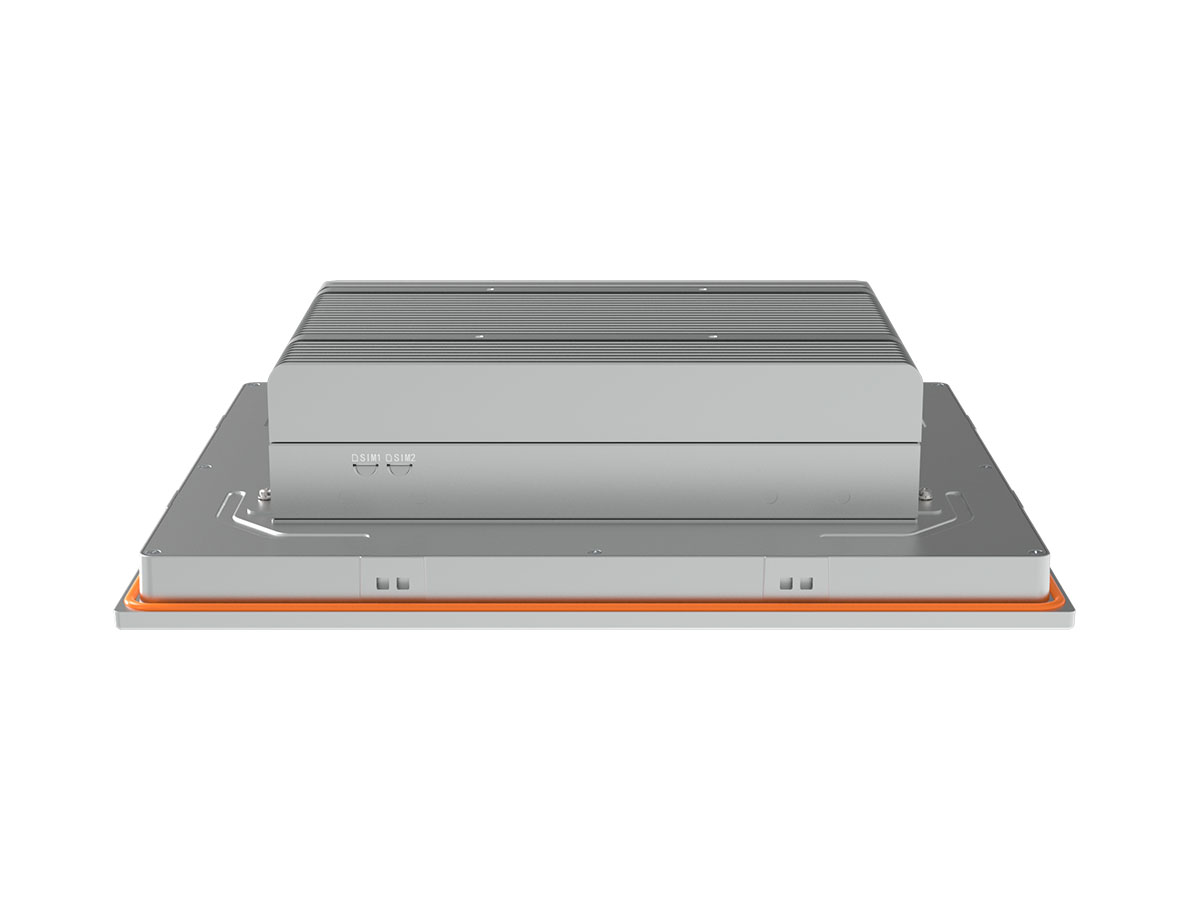

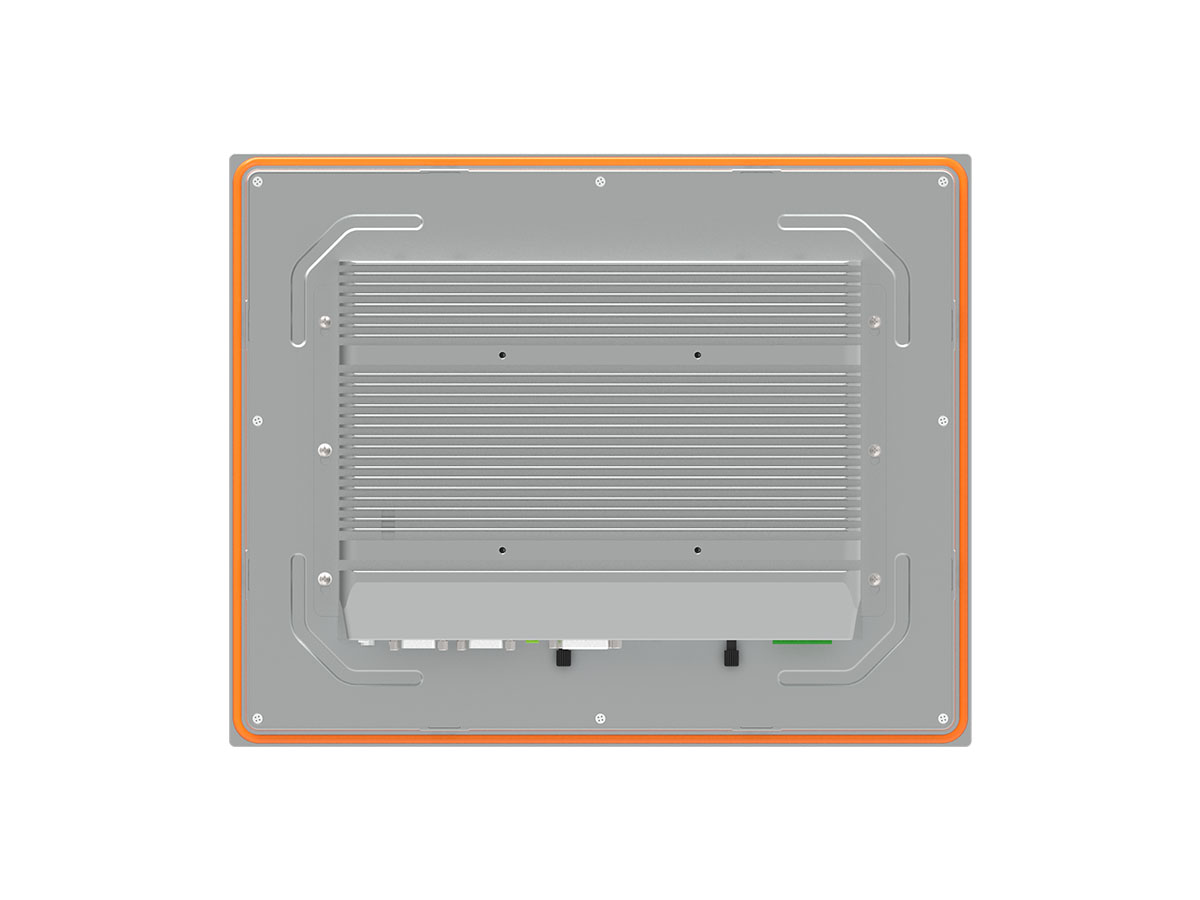

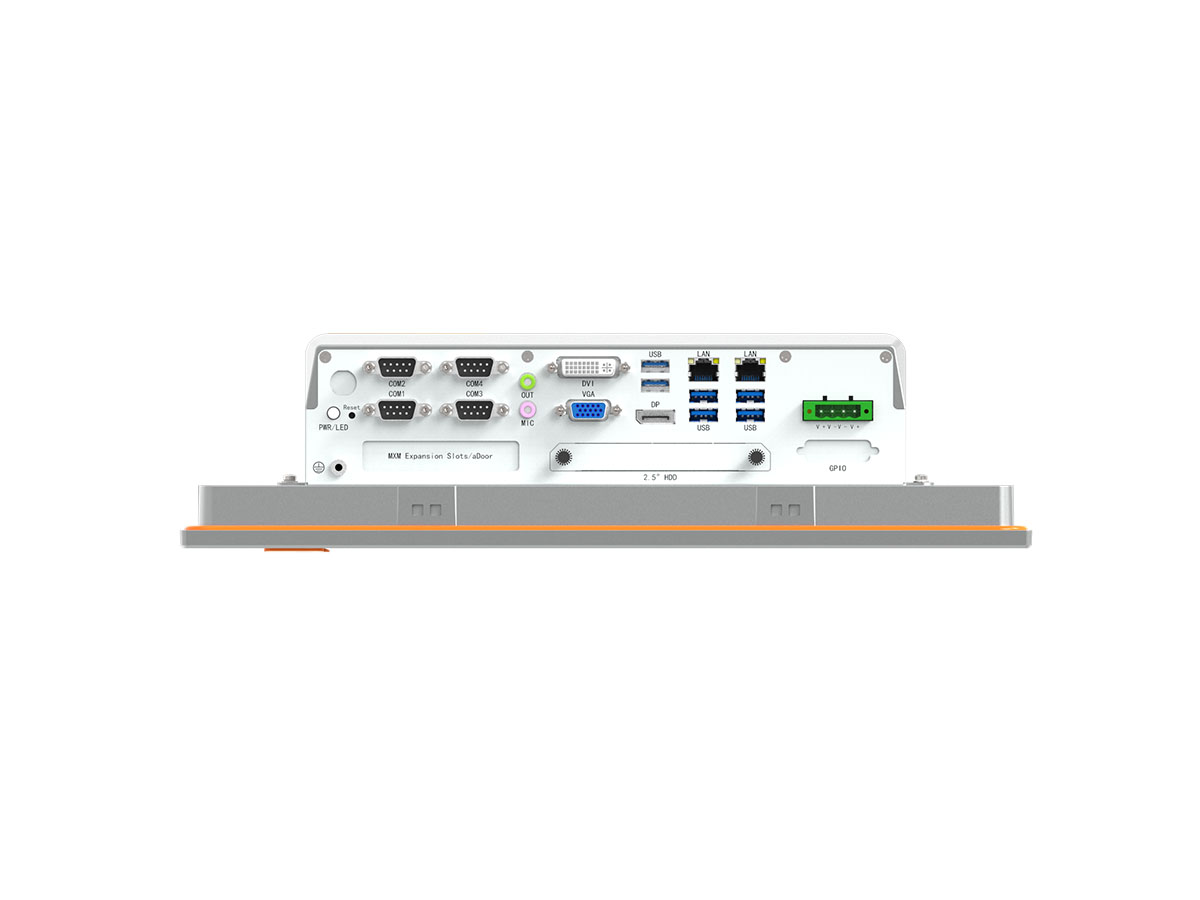

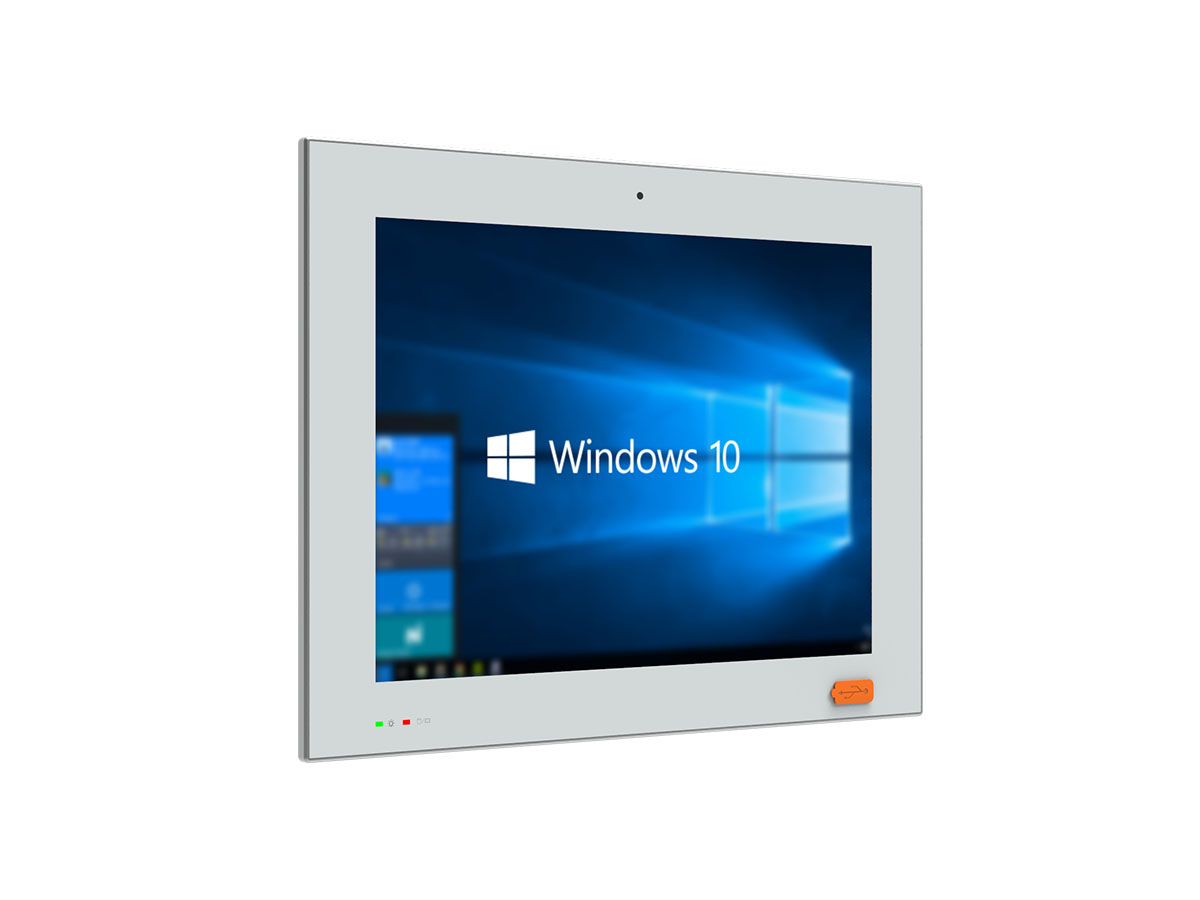

Note: The product image shown above is the PL150CQ-E7L-Q670 model
PLE7L系列Q670平臺 工業一體機/工業平板電腦 電容觸摸屏
遠程管理
狀態監控
遠程運維
安全控制
聯系我們
掃碼即可添加微信，售前客服為您提供咨詢服務
產品描述
阿普奇全屏電容觸摸工業一體機PLxxxCQ-E7L系列Q670平臺采用先進的電容觸摸屏設計，可滿足各種工業領域的需求。其模塊化設計可選配12.1英寸至21.5英寸屏幕，支持方屏/寬屏，滿足不同場景的使用需求。前面板符合IP65防水防塵要求，適用于惡劣工業環境。前面板還集成了USB Type-A接口和信號指示燈，方便用戶的操作和狀態監控。此外，該工業一體機支持Intel? 12/13代Core/Pentium/Celeron臺式CPU，TDP 35W，LGA1700，并搭載了Intel? Q670芯片組。另外，2個Intel網口接口（1*1GbE和1*2.5GbE）可滿足高速數據傳輸?shù)男枨?。該工業一體機還擁有3路顯示輸出接口，包括HDMI、DP++和內部LVDS，支持高達4K@60Hz的分辨率，滿足多屏顯示或高清顯示需求。該產品還提供了豐富的USB、串口擴展接口以及PCIe、mini PCIe、M.2擴展插槽，可靈活滿足用戶的擴展需求。同時，采用無風扇無風道無噪音被動散熱技術，工業一體機的散熱效果更加出色，可保證長時間穩定運行。
總之，阿普奇全屏電容觸摸工業一體機PLxxxCQ-E7L系列Q670平臺集成了先進的觸控技術、豐富的接口和穩定的性能，是工業自動化領域的理想選擇。
| Model | PL121CQ-E7L | PL150CQ-E7L | PL156CQ-E7L | PL170CQ-E7L | PL185CQ-E7L | PL191CQ-E7L | PL215CQ-E7L | |
| LCD | Display Size | 12.1" | 15.0" | 15.6" | 17.0" | 18.5" | 19.1" | 21.5" |
| Display Type | XGA TFT-LCD | XGA TFT-LCD | FHD TFT-LCD | SXGA TFT-LCD | WXGA TFT-LCD | WXGA TFT-LCD | FHD TFT-LCD | |
| Max.Resolution | 1024 x 768 | 1024 x 768 | 1920 x 1080 | 1280 x 1024 | 1366 x 768 | 1440 x 900 | 1920 x 1080 | |
| Luminance | 350 cd/m2 | 300 cd/m2 | 350 cd/m2 | 250 cd/m2 | 250 cd/m2 | 250 cd/m2 | 250 cd/m2 | |
| Aspect Ratio | 4:3 | 4:3 | 16:9 | 5:4 | 16:9 | 16:10 | 16:9 | |
| Viewing Angle | 80/80/80/80° | 88/88/88/88° | 89/89/89/89° | 85/85/80/80° | 89/89/89/89° | 85/85/80/80° | 89/89/89/89° | |
| Max. Color | 16.7M | 16.7M | 16.7M | 16.7M | 16.7M | 16.7M | 16.7M | |
| Backlight Lifetime | 30,000 hr | 70,000 hr | 50,000 hr | 30,000 hr | 30,000 hr | 30,000 hr | 50,000 hr | |
| Contrast Ratio | 800:1 | 2000:1 | 800:1 | 1000:1 | 1000:1 | 1000:1 | 1000:1 | |
| Touchscreen | Touch Type | Projected Capacitive Touch | ||||||
| Controller | USB signal | |||||||
| Input | Finger/Capacitive Touch Pen | |||||||
| Light Transmission | ≥85% | |||||||
| Hardness | ≥6H | |||||||
| Processor System | CPU | Intel? 6/7/8/9th Generation Core / Pentium/ Celeron Desktop CPU | ||||||
| TDP | 35W | |||||||
| Socket | LGA1151 | |||||||
| Chipset | Q170 | |||||||
| BIOS | AMI UEFI BIOS (Support Watchdog Timer) | |||||||
| Memory | Socket | 2 * Non-ECC SO-DIMM Slot, Dual Channel DDR4 up to 2133MHz | ||||||
| Max Capacity | 64GB, Single Max. 32GB | |||||||
| Graphics | Controller | Intel? HD Graphics | ||||||
| Ethernet | Controller | 1 * Intel i210-AT GbE LAN Chip (10/100/1000 Mbps) 1 * Intel i219-LM/V GbE LAN Chip (10/100/1000 Mbps) |
||||||
| Storage | SATA | 1 * SATA3.0, quick release 2.5-inch hard drive bay (T ≤ 7mm) 1 * SATA3.0, Internal 2.5" hard disk bays (T≤9mm, Optional) Support RAID 0, 1 |
||||||
| M.2 | 1 * M.2 Key-M (PCIe x4 Gen 3 + SATA3.0, NVMe/SATA SSD Auto Detect, 2242/2260/2280) | |||||||
| Expansion Slots | MXM/aDoor | 1 * APQ MXM (Optional MXM 4 * LAN/4 * POE/6 * COM/16 * GPIO expansion card) 1 * aDoor Expansion Slot |
||||||
| Mini PCIe | 1 * Mini PCIe (PCIe x1 Gen 2 + USB 2.0, with 1 * SIM Card) | |||||||
| M.2 | 1 * M.2 Key-B (PCIe x1 Gen 2 + USB3.0, with 1 * SIM Card, 3042/3052) | |||||||
| Front I/O | Ethernet | 2 * RJ45 | ||||||
| USB | 6 * USB3.0 (Type-A, 5Gbps) | |||||||
| Display | 1 * DVI-D: max resolution up to 1920*1200 @ 60Hz 1 * VGA (DB15/F): max resolution up to 1920*1200 @ 60Hz 1 * DP: max resolution up to 4096*2160 @ 60Hz |
|||||||
| Audio | 2 * 3.5mm Jack (Line-Out + MIC) | |||||||
| Serial | 2 * RS232/422/485 (COM1/2, DB9/M, Full Lanes, BIOS Switch) 2 * RS232 (COM3/4, DB9/M) |
|||||||
| Button | 1 * Power Button + Power LED 1 * System Reset Button (Hold down 0.2 to 1s to restart, and hold down 3s to clear CMOS) |
|||||||
| Rear I/O | Antenna | 4 * Antenna hole | ||||||
| SIM | 2 * Nano SIM card slots | |||||||
| Internal I/O | USB | 2 * USB2.0 (wafer) | ||||||
| LCD | 1 * LVDS (wafer): max resolution up to 1920*1200 @ 60Hz | |||||||
| TFront Panel | 1 * TF_Panel (3 * USB 2.0 + FPANEL, wafer) | |||||||
| Front Panel | 1 * Front Panel (PWR + RST + LED, wafer) | |||||||
| Speaker | 1 * Speaker (2-W (per channel)/8-Ω Loads, wafer) | |||||||
| Serial | 2 * RS232 (COM5/6, wafer) | |||||||
| GPIO | 1 * 16 bits DIO (8xDI and 8xDO, wafer) | |||||||
| LPC | 1 * LPC (wafer) | |||||||
| SATA | 2 * SATA 7P Connector | |||||||
| SATA Power | 2 * SATA Power (SATA_PWR1/2, wafer) | |||||||
| FAN | 1 * CPU FAN (wafer) 2 * SYS FAN (wafer) |
|||||||
| Power Supply | Type | DC, AT/ATX | ||||||
| Power Input Voltage | 9 ~ 36VDC, P≤240W | |||||||
| Connector | 1 * 4Pin Connector, P=5.00/5.08 | |||||||
| RTC Battery | CR2032 Coin Cell | |||||||
| OS Support | Windows | 6/7th Core?: Windows 7/10/11 8/9th Core?: Windows 10/11 |
||||||
| Linux | Linux | |||||||
| Watchdog | Output | System Reset | ||||||
| Interval | Programmable via Software from 1 to 255 sec | |||||||
| Mechanical | Enclosure Material | Radiator: Aluminum alloy, Box: SGCC | ||||||
| Mounting | VESA, embedded | |||||||
| Dimensions (L * W * H, Unit: mm) |
321.9*260.5*95.7 | 380.1*304.1*95.7 | 420.3*269.7*95.7 | 414*346.5*95.7 | 485.7*306.3*95.7 | 484.6*332.5*95.7 | 550*344*95.7 | |
| Weight | Net: 6.6 kg
Total: 8.1 kg |
Net: 8.0 kg
Total: 9.5 kg |
Net: 7.9 kg
Total: 9.6 kg |
Net: 8.8 kg
Total: 10.3 kg |
Net: 8.7 kg
Total: 10.2 kg |
Net: 10.0 kg
Total: 11.5 kg |
Net: 9.6 kg
Total: 11.1 kg |
|
| Environment | Heat Dissipation System | Passive heat dissipation | ||||||
| Operating Temperature | -20~60℃ | -20~60℃ | -20~60℃ | -20~60℃ | -20~60℃ | 0~50℃ | 0~50℃ | |
| Storage Temperature | -20~60℃ | -20~70℃ | -30~80℃ | -30~70℃ | -30~70℃ | -20~60℃ | -20~60℃ | |
| Relative Humidity | 5 to 95% RH (non-condensing) | |||||||
| Vibration During Operation | With SSD: IEC 60068-2-64 (1Grms@5~500Hz, random, 1hr/axis) | |||||||
| Shock During Operation | With SSD: IEC 60068-2-27 (15G, half sine, 11ms) | |||||||
-
